CX1612SB - Crystal

Features

  • Crystal unit for Consumer Products.
  • Ultra-miniature and low profile (1.6×1.2×0.3mm).
  • Ceramic package.
  • Reflow compatible How to Order CX1612SB 36000.
  • ① ② ③ ④⑤⑥ ⑦ ① Series ③ Load Capacitance B0 D0 EJ 6 pF 8 pF.
  • Std. ② Frequency ④ Frequency Stability G ±15×10-6 Std.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CX16 Ultra-Miniature Surface Mount Quartz Crystal STATEK
CX16 Subminiature / Leaded Solid Tantalum Capacitors Vishay Siliconix
CX101 DC/DC Power Converter Tamura
CX101 Crystal Oscillators Oscillatek
CX103 530kHz to 2.1MHz Miniature Quartz Crysta STATEK

Other Datasheets by Kyocera Corporation

Part Number Description
CX1255GB Crystal Units

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

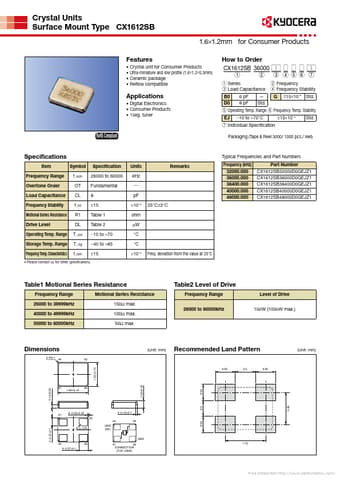

Crystal Units Surface Mount Type CX1612SB 1.6×1.2mm for Consumer Products Features • Crystal unit for Consumer Products • Ultra-miniature and low profile (1.6×1.2×0.3mm) • Ceramic package • Reflow compatible How to Order CX1612SB 36000 □□ □ □ □ □□ ① ② ③ ④⑤⑥ ⑦ ① Series ③ Load Capacitance B0 D0 EJ 6 pF 8 pF — Std. ② Frequency ④ Frequency Stability G ±15×10-6 Std. Applications • Digital Electronics • Consumer Products • 1seg. tuner ⑤ Operating Temp. Range ⑥ Frequency Temp. Stability -10 to +70°C ±15×10-6 Std. ⑦ Individual Specification RoHS Compliant Packaging (Tape & Reel 3000/ 1000 pcs./ reel) Specifications Item Frequency Range Overtone Order Load Capacitance Frequency Stability Motional Series Resistance Drive Level Operating Temp. Range Storage Temp. Range Frequency Temp.
