TCXO-214C - Temperature Compensated Crystal Oscillators

Name: TCXO-214C
SKU: TCXO-214C-957872

Kyocera Kinseki Corpotation

The TCXO-214C by Kyocera Kinseki Corpotation is a Temperature Compensated Crystal Oscillators. Below is the official datasheet preview.

Datasheet Details

Part number	TCXO-214C
Manufacturer	Kyocera Kinseki Corpotation
File Size	58.67 KB
Description	Temperature Compensated Crystal Oscillators
Datasheet	TCXO-214C-KyoceraKinsekiCorpotation.pdf

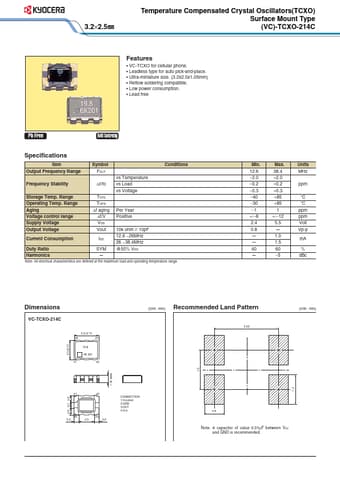

Additional preview pages of the TCXO-214C datasheet.

VC-TCXO for cellular phone.
Leadless type for auto pick-and-place.
Ultra-miniature size. (3.2x2.5x1.05mm).
Reflow soldering compatible.
Low power consumption.
Lead free Pb Free RoHS Conforming Specifications Item Symbol Conditions Output Frequency Range FOUT vs Temperature Frequency Stability ∆f/fo vs Load vs Voltage Storage Temp. Range TSTG Operating Temp. Range TOPR Aging ∆f aging Per Year Voltage control range ∆f/V.
