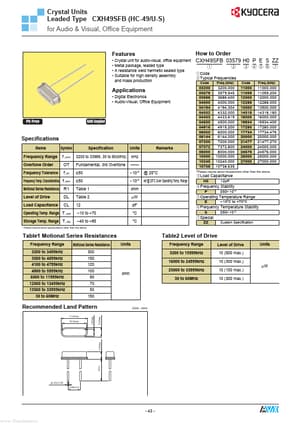

Crystal Units Leaded Type CXH49SFB (HC-49/U-S) for Audio & Visual, Office Equipment
Features
• Crystal unit for audio-visual, office equipment • Metal package, leaded type • A resistance weld hermetic sealed type • Suitable for high density assembly
and mass production
Applications
• Digital Electronics • Audio-Visual, Office Equipment
Pb Free
RoHS Compliant
Specifications
Items
Symbol
Specification
Units
Remarks
Frequency Range f_nom 3200 to 33999, 30 to 60(MHz) kHz
Overtone Order
OT Fundamental, 3rd Overtone ––––
Frequency Tolerance f_tol 50
10-6 @ 25°C
Frequency Temp. Characteristics f_tem 50
10-6 ref.@ 25°C Over Operating Temp. Range
Motional Series Resistance R1 Table 1
ohm
Level of Drive
DL Table 2
W
Load Capacitance CL 12
pF
Operating Temp.
CXH49SFB Datasheet
