KS2468UA2 Datasheet (Kwansemi) - Dual N-Channel Advanced Power MOSFET

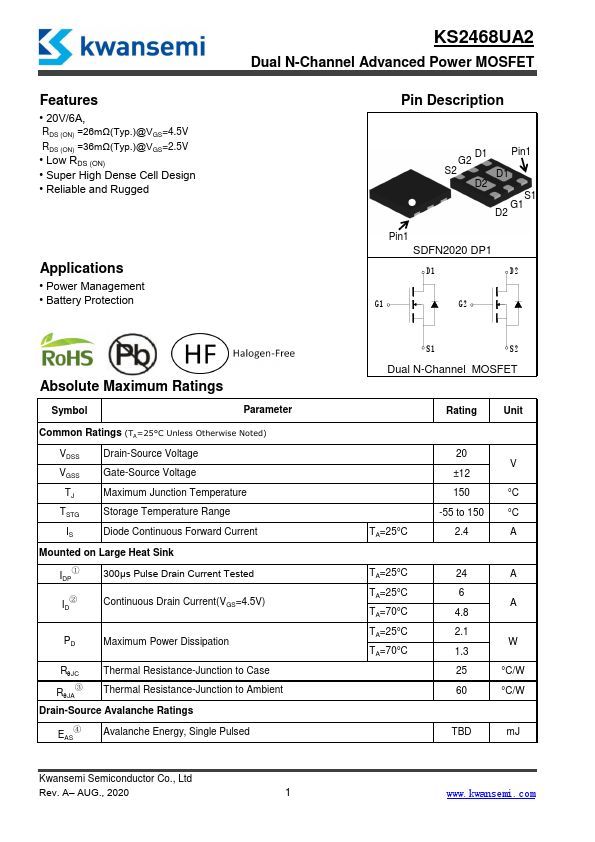

KS2468UA2, Dual N-Channel Advanced Power MOSFET

D1 G2 Pin1 S2 D1 D2 S1 G1 D2 Pin1 SDFN2020 DP1 D1 D2 G1 G2 Absolute Maximum Ratings Symbol Parameter Common Ratings (TA=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG Storage Temperature Range IS Diode Conti

KS2468UA2 Features

* 20V/6A, RDS (ON) =26mΩ(Typ.)@VGS=4.5V RDS (ON) =36mΩ(Typ.)@VGS=2.5V

* Low RDS (ON)

* Super High Dense Cell Design

* Reliable and Rugged Applications

* Power Management

* Battery Protection KS2468UA2 Dual N-Channel Advanced Power MOSFET Pin Descripti
