KSA240D2R-5 - Solid State Relay

Download the KSA240D2R-5 datasheet PDF. This datasheet also covers the KSA240D2-5 variant, as both devices belong to the same solid state relay family and are provided as variant models within a single manufacturer datasheet.

General Description

The KSA series is printed board mounted AC output solid state relay.Small volume with high surge current ability.Sutible for control electromagnetic valve,electric machine,filament lamp etc.The control input voltage is 5VDC,12VDC and 24VDC.Opto-isolation bettween input and output,output is AC output

📥 Download Datasheet

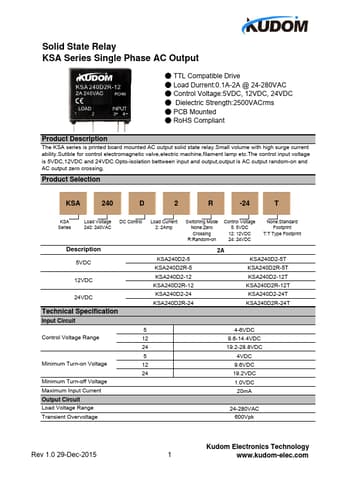

KSA240D2R-5 solid state relay by Kudom - Datasheet Preview — Note: The manufacturer provides a single datasheet file (KSA240D2-5-Kudom.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	KSA240D2R-5
Manufacturer	Kudom
File Size	125.18 KB
Description	Solid State Relay
Datasheet	KSA240D2R-5 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
KSA240AC8	Solid State Relay	COSMO Electronics Corporation
KSA2015CAT	Single N-Channel Advanced Power MOSFET	Kwansemi
KSA210AC8	Solid State Relay	cosmo
KSA215AC8	Solid State Relay	cosmo
KSA225AC8	Solid State Relay	cosmo

Other Datasheets by Kudom

Part Number	Description
KSA240D2R-5T	Solid State Relay
KSA240D2R-12	Solid State Relay
KSA240D2R-12T	Solid State Relay
KSA240D2R-24	Solid State Relay
KSA240D2R-24T	Solid State Relay

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

Solid State Relay KSA Series Single Phase AC Output ● TTL Compatible Drive ● Load Durrent:0.1A-2A @ 24-280VAC ● Control Voltage:5VDC, 12VDC, 24VDC ● Dielectric Strength:2500VACrms ● PCB Mounted ● RoHS Compliant Product Description The KSA series is printed board mounted AC output solid state relay.Small volume with high surge current ability.Sutible for control electromagnetic valve,electric machine,filament lamp etc.The control input voltage is 5VDC,12VDC and 24VDC.Opto-isolation bettween input and output,output is AC output random-on and AC output zero crossing.
