KPC614 - Photocoupler

Features

  • Small Package Size.
  • Collector-Emitter Voltage : Min.30V.
  • Current Transfer Ratio : Type 1000% (at IF=.
  • Electrical Isolation Voltage : AC5000Vrms.
  • UL Recognized File No. E107486 1mA, VCE=2V).

📥 Download Datasheet

Datasheet Details

Part number KPC614
Manufacturer Kodenshi
File Size 103.96 KB
Description Photocoupler
Datasheet download datasheet KPC614 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KPC684x3CD5B7xxxx SNUBBER CAPACITORS CAMEL TECHNOLOGY
KPC684x3CD5C9xxxx SNUBBER CAPACITORS CAMEL TECHNOLOGY
KPC684x4AD5B7xxxx SNUBBER CAPACITORS CAMEL TECHNOLOGY
KPC684x4AD5C9xxxA SNUBBER CAPACITORS CAMEL TECHNOLOGY
KPC684x4BD5B7xxxx SNUBBER CAPACITORS CAMEL TECHNOLOGY

Other Datasheets by Kodenshi

Part Number Description
KPC3020 (KPC3020 - KPC3023) Photocoupler(These Photocouplers cosist of a Gallium Arsenide Infrared Emitting)
KPC3021 (KPC3020 - KPC3023) Photocoupler(These Photocouplers cosist of a Gallium Arsenide Infrared Emitting)
KPC3022 (KPC3020 - KPC3023) Photocoupler(These Photocouplers cosist of a Gallium Arsenide Infrared Emitting)
KPC3023 (KPC3020 - KPC3023) Photocoupler(These Photocouplers cosist of a Gallium Arsenide Infrared Emitting)
KPC3051 (KPC3051 / KPC3052) Photocoupler(These Photocouplers cosist of a Gallium Arsenide Infrared Emitting)

Full PDF Text Transcription

Click to expand full text

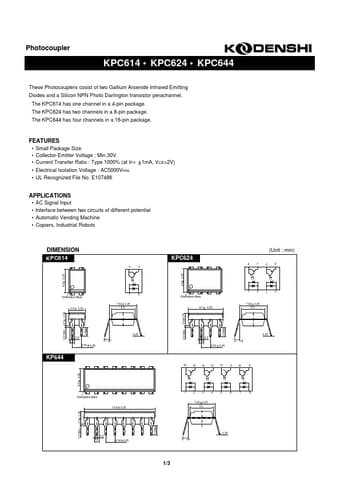

Photocoupler KPC614 • KPC624 • KPC644 These Photocouplers cosist of two Gallium Arsenide Infrared Emitting Diodes and a Silicon NPN Photo Darlington transistor perachannel. The KPC614 has one channel in a 4-pin package. The KPC624 has two channels in a 8-pin package. The KPC644 has four channels in a 16-pin package. FEATURES • Small Package Size • Collector-Emitter Voltage : Min.30V • Current Transfer Ratio : Type 1000% (at IF= • Electrical Isolation Voltage : AC5000Vrms • UL Recognized File No. E107486 1mA, VCE=2V) APPLICATIONS • AC Signal Input • Interface between two circuits of different potential • Automatic Vending Machine • Copiers, Industrial Robots DIMENSION KPC614 4 0.25 3 0.25 (Unit : mm) KPC624 8 7 6 5 6.5 6.5 1 1 Orientation Mark 2 Orientation Mark 2 3 4 4.6 0.
