KP23130M - High Performance Primary Side Regulation CV/CC Power Switch

Download the KP23130M datasheet PDF (KP23130 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for high performance primary side regulation cv/cc power switch.

Description

Built-in 800V High Voltage Power BJT Primary Side Regulation (PSR) Control with High Efficiency Single Failure Protections for power supply Multi-Mode PSR Control Fast Dynamic Response Optimized EMI Performance Audio Noise Free Operation ±5% CC and CV

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (KP23130-KiwiInstruments.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number KP23130M
Manufacturer Kiwi Instruments
File Size 1.36 MB
Description High Performance Primary Side Regulation CV/CC Power Switch
Datasheet download datasheet KP23130M Datasheet

📁 Similar Datasheet

  • KP2310 - Pin Diode (Asahi Kasei)
  • KP2310BR - Pin Diode (TOKO)
  • KP2310R - Pin diode (TOKO)
  • KP2310S - Pin diode (TOKO)
  • KP2311 - Pin Diode (Asahi Kasei)
  • KP2311E - Pin diode (TOKO)
  • KP2311K - Pin Diode (TOKO)
  • KP234 - Analog Barometric Air Pressure Sensor IC (Infineon)
  • KP235 - Analog Barometric Air Pressure Sensor (Infineon)
  • KP236N6165 - Analog Barometric Air Pressure Sensor IC (Infineon)
Other Datasheets by Kiwi Instruments
  • KP23130 - High Performance Primary Side Regulation CV/CC Power Switch
  • KP23131 - High Performance Primary Side Regulation CV/CC Power Switch
  • KP23132 - High Performance Primary Side Regulation CV/CC Power Switch
  • KP23132K - High Performance Primary Side Regulation CV/CC Power Switch
  • KP23132M - High Performance Primary Side Regulation CV/CC Power Switch
  • KP2311XSGA - High-performance constant current and constant voltage primary-side control power switch
  • KP201 - Offline Current Mode PWM Controller
  • KP2120SG - Multi-Mode Primary Side Regulation QR-Buck CV/CC Power Switch

Full PDF Text Transcription

Click to expand full text

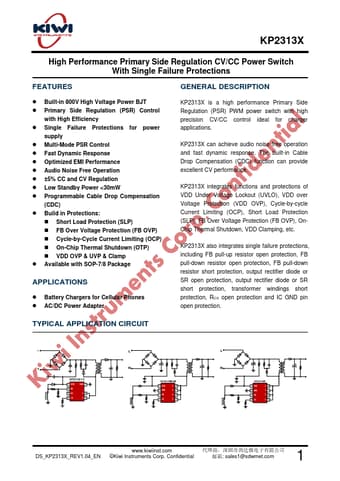

KP2313X High Performance Primary Side Regulation CV/CC Power Switch With Single Failure Protections FEATURES GENERAL DESCRIPTION  Built-in 800V High Voltage Power BJT  Primary Side Regulation (PSR) Control with High Efficiency  Single Failure Protections for power supply  Multi-Mode PSR Control  Fast Dynamic Response  Optimized EMI Performance  Audio Noise Free Operation  ±5% CC and CV Regulation  Low Standby Power <30mW  Programmable Cable Drop Compensation (CDC)  Build in Protections:  Short Load Protection (SLP)  FB Over Voltage Protection (FB OVP)  Cycle-by-Cycle Current Limiting (OCP)  On-Chip Thermal Shutdown (OTP)  VDD OVP & UVP & Clamp  Available with SOP-7/8 Package APPLICATIONS  Battery Chargers for Cellular Phones  AC/DC Power Adapter KP2313X is a high pe
