SR540, SR520 SCHOTTKY BARRIER RECTIFIER

SR540 Description

SR520 THRU SR5100 SCHOTTKY BARRIER RECTIFIER REVERSE VOLTAGE 20 to 100 Volts FORWARD CURRENT 5.0 Ampere .

SR540 Features

* DO-201AD（DO-27） Low forward voltage drop Low leakage current High forward surge capability High reliability MECHANICAL DATA Case: DO-27,Mold plastic Epoxy: UL94V-0 rate flame retardant Polarity: Indicated by cathode band Lead:MIL-STD-202E, Method 208 guaranteed Mounting position: Any MAXIMUM RAT

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SR540, SR520. Please refer to the document for exact specifications by model.

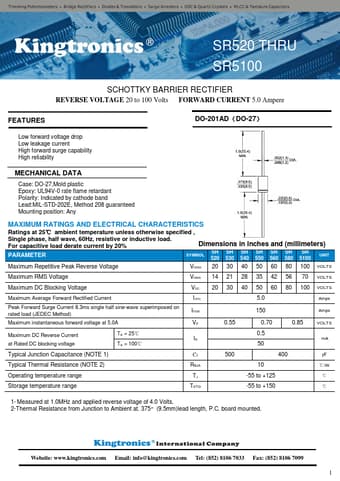

datasheet Preview Page 2

Datasheet Details

Part number
SR540, SR520
Manufacturer
Kingtronics
File Size
321.16 KB
Datasheet
SR520-Kingtronics.pdf
Description
SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SR540, SR520.
Please refer to the document for exact specifications by model.
