HER103, HER101 HIGH EFFICIENCY RECOVERY RECTIFIERS

HER103 Description

HER101 THRU HER108 HIGH EFFICIENCY RECOVERY RECTIFIERS REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 1.0 Ampere .

HER103 Features

* DO-41 Low forward voltage drop Low leakage current High forward surge capability High temperature soldering guaranteed 260℃/10 seconds,0.375”(9.5mm)lead length at 5 lbs(2.3kg) tension MECHANICAL DATA Case: Transfer molded plastic Epoxy: UL94V-0 rate flame retardant Polarity: Color band denotes

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HER103, HER101. Please refer to the document for exact specifications by model.

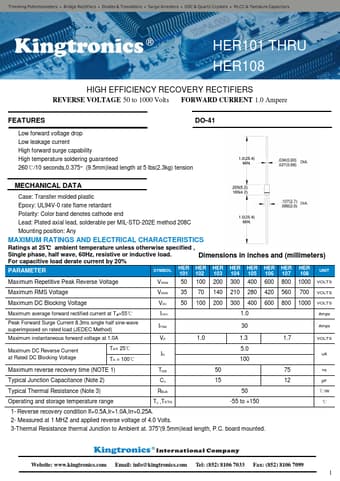

datasheet Preview Page 2

Datasheet Details

Part number
HER103, HER101
Manufacturer
Kingtronics
File Size
344.46 KB
Datasheet
HER101-kingtronics.pdf
Description
HIGH EFFICIENCY RECOVERY RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: HER103, HER101.
Please refer to the document for exact specifications by model.
