L-7104EB-2YD Bi-Level Circuit Board Indicator

L-7104EB-2YD Description

L-7104EB/2YD T-1 (3mm) Bi-Level Circuit Board Indicator .
The Yellow source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Yellow Light Emitting Diode PACKAGE DIMENSIONS F.

L-7104EB-2YD Features

* Pre-trimmed leads for pc mounting
* Black case enhances contrast
* High reliability - life measured in years
* Housing UL rating: 94V-0
* Housing material: Type 66 nylon Kingbright
* Halogen-free

L-7104EB-2YD Applications

* Status indicator
* Illuminator
* Signage applications
* Decorative and entertainment lighting
* Commercial and residential architectural lighting Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Lead spacing is measu

📥 Download Datasheet

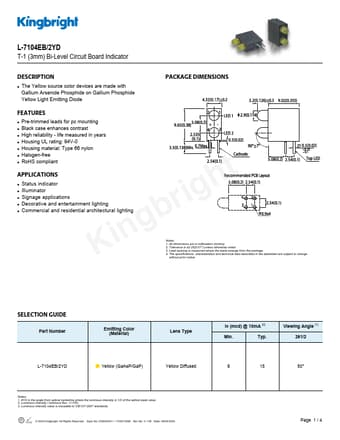

Preview of L-7104EB-2YD PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
L-7104EB-2YD
Manufacturer
Kingbright
File Size
689.33 KB
Datasheet
L-7104EB-2YD-Kingbright.pdf
Description
Bi-Level Circuit Board Indicator
