AT2117QR425ZS-VFS SMD LED

AT2117QR425ZS-VFS Description

2.15X1.7mm SMD LED WITH CERAMIC SUBSTRATE ATTENTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC DISCHARGE SENSITIVE DEVICES .

AT2117QR425ZS-VFS Features

* z Dimension: 2.15mmX 1.7mm X 0.8mm. z Low thermal resistance. z Ceramic package with silicone resin. z Higher brightness LED flash. z Small package with high efficiency. z Surface mount technology. z ESD protection. z Radiation patterns optimal for camera flash. z Enables higher resolution pictures

AT2117QR425ZS-VFS Applications

* Digital still cameras. Camera-phones. PDAs. Room lighting. Architectural lighting. Decorative/pathway lighting. Front panel backlight. Package Dimensions Chip Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. The specifications, characte

📥 Download Datasheet

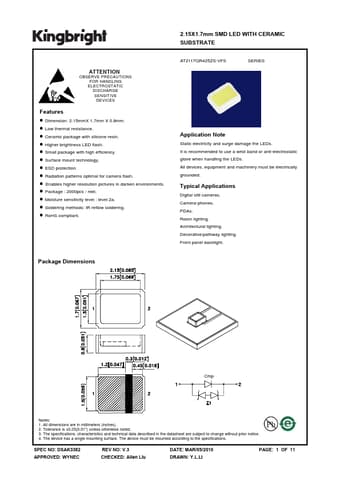

Preview of AT2117QR425ZS-VFS PDF
datasheet Preview Page 2 datasheet Preview Page 3
