APT2012EC SMD Chip LED Lamp

APT2012EC Description

APT2012EC 2.0 x 1.25 mm SMD Chip LED Lamp .
The High Efficiency Red source color devices are Made with Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diode FEATURES 2.

APT2012EC Applications

* Backlight Status indicator Home and smart appliances Wearable and portable devices Healthcare applications PACKAGE DIMENSIONS RECOMMENDED SOLDERING PATTERN (units : mm; tolerance : ± 0.1) Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.1(0.004") unless otherwise noted. 3.

📥 Download Datasheet

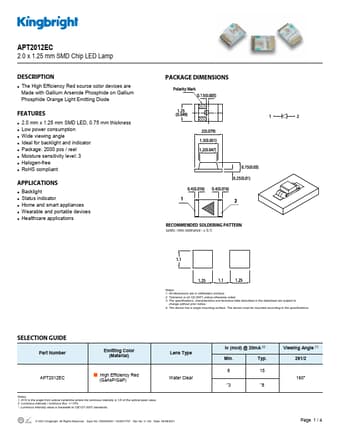

Preview of APT2012EC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APT2012EC
Manufacturer
Kingbright
File Size
481.21 KB
Datasheet
APT2012EC-Kingbright.pdf
Description
SMD Chip LED Lamp
