HMMC-5032 - 17.7-32 GHz Amplifier

HMMC-5032 Description

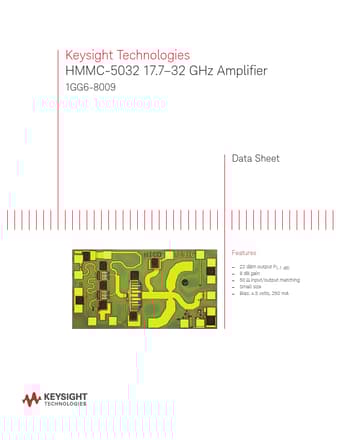

Keysight Technologies HMMC-5032 17.7 *32 GHz Amplifier 1GG6-8009 Data Sheet .
The HMMC-5032 is a MMIC power amplifier designed for use in wireless transmitters that operate within the 17.

HMMC-5032 Features

* 22 dBm output P(
* 1 dB)
* 8 dB gain
* 50 Ω input/output matching
* Small size
* Bias: 4.5 volts, 250 mA 02 | Keysight | HMMC-5032 17.7
* 32 GHz Amplifier

HMMC-5032 Applications

* This device has input and output matching circuitry for use in 50 Ω environments. Chip Size: 1370 x 770 μm (53.3 x 30.0 mils) Chip Size Tolerance: ±10 μm (±0.4 mils) Chip Thickness: 127 ± 15 μm (5 ±0.6 mils) Pad Dimensions: 80 × 80 μm (3.2 × 3.2 mils) Absolute Maximum Ratings1 Symbol VD1
