ZMM5221B - Zener Diodes

Kexin

📥 Download Datasheet

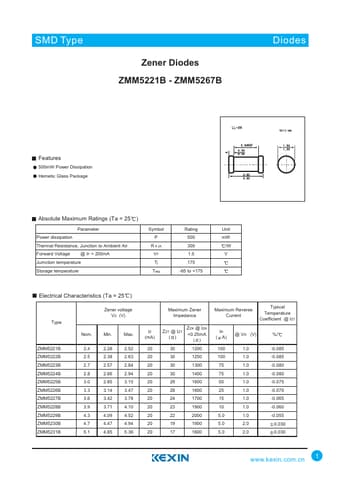

ZMM5221B Datasheet Preview — Preview of ZMM5221B PDF

datasheet Preview Page 2

Datasheet Details

Part number	ZMM5221B
Manufacturer	Kexin
File Size	40.19 KB
Description	Zener Diodes
Datasheet	ZMM5221B-Kexin.pdf

ZMM5221B Product details

Features

500mW Power Dissipation Hemetic Glass Package Absolute Maximum Ratings (Ta = 25 ) Parameter Power dissipation Thermal Resistance, Junction to Ambient Air Forward Voltage @ IF = 200mA Jumction temperature Storage temperature Symbol P R JA VF Tj Tstg Rating 500 300 1.5 175 -65 to +175 Unit mW /W V Electrical Characteristics (Ta = 25 ) Type Zener voltage VZ (V) Nom. Min. Max. ZMM5221B ZMM5222B ZMM5223B ZMM5224B ZMM5225B ZMM5226B ZMM5227B ZMM5228B ZMM5229B ZMM5230B ZMM5231B 2.4 2.28 2.52 2.
