KTC2026 - NPN Transistors

Kexin

📥 Download Datasheet

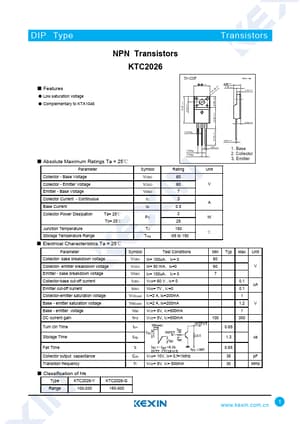

KTC2026 Datasheet Preview — Preview of KTC2026 PDF

datasheet Preview Page 2

Datasheet Details

Part number	KTC2026
Manufacturer	Kexin
File Size	919.10 KB
Description	NPN Transistors
Datasheet	KTC2026-Kexin.pdf

KTC2026 Product details

Features

s.
Low saturation voltage.
Complementary to KTA1046 Transistors NPN Transistors KTC2026 TO-220F ±0.20 φ3.18±0.20 ±0.20 2.54 ±0.20 Unit: mm 0.70 ±0.20 6.68 ±0.20 15.87 ±0.20 3.30 ±0.20 12.42 ±0.20 1.47max.
Absolute Maximum Ratings Ta = 25℃ 2.54typ 2.54typ Parameter Symbol Rating Collector - Base Voltage VCBO 60 Collector - Emitter Voltage VCEO 60 Emitter - Base Voltage VEBO 7 Collector Current - Continuous IC 3 Base Current IB 0.5 Collector Power Dissi.
