FSP3170 - WIDE INPUT 2A STEP DOWN CONVERTER

Name: FSP3170
SKU: FSP3170-1388250

Kexin

The FSP3170 by Kexin is a WIDE INPUT 2A STEP DOWN CONVERTER. Below is the official datasheet preview.

Datasheet Details

Part number	FSP3170
Manufacturer	Kexin
File Size	0.95 MB
Description	WIDE INPUT 2A STEP DOWN CONVERTER
Datasheet	FSP3170-Kexin.pdf

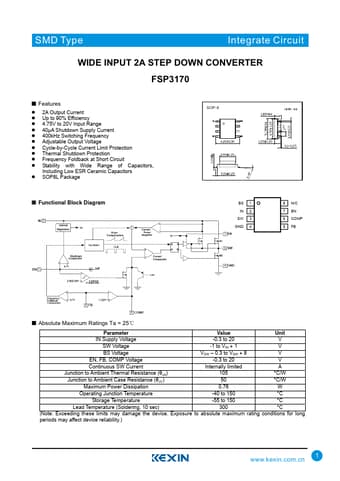

Additional preview pages of the FSP3170 datasheet.

s z 2A Output Current z Up to 90% Efficiency z 4.75V to 20V Input Range z 40µA Shutdown Supply Current z 400kHz Switching Frequency z Adjustable Output Voltage z Cycle-by-Cycle Current Limit Protection z Thermal Shutdown Protection z Frequency Foldback at Short Circuit z Stability with Wide Range of Capacitors, Including Low ESR Ceramic Capacitors z SOP8L Package SOP-8.
Functional Block Diagram BS IN SW GND 1 2 3 4 8 N/C 7 EN 6 COMP 5 FB.
Absolute Maximum Ratings Ta = 25℃ Parame.
