DTC143EKA - Digital transistors

Name: DTC143EKA
SKU: DTC143EKA-1145471

Kexin

The DTC143EKA by Kexin is a Digital transistors. Below is the official datasheet preview.

Datasheet Details

Part number	DTC143EKA
Manufacturer	Kexin
File Size	49.83 KB
Description	Digital transistors
Datasheet	DTC143EKA-Kexin.pdf

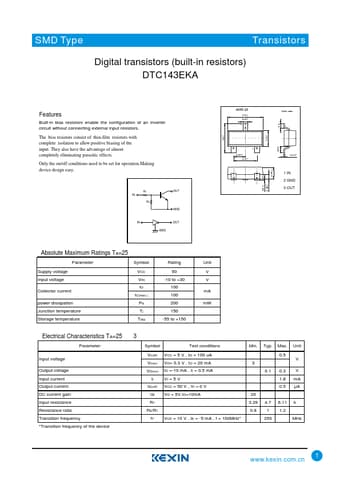

Additional preview pages of the DTC143EKA datasheet.

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors. The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. Only the on/off conditions need to be set for operation. Making device design easy. R1 IN R2 OUT GND IN OUT GND +0.12.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 12 0.95+0.1 -0.1 1.9+0.1.
