BC850B, BC849 NPN Transistors

BC850B Description

SMD Type NPN Transistors BC849~BC850 (KC849~KC850) Transistors * .

BC850B Features

* Low current (max. 100 mA)
* Low voltage (max. 45 V).
* PNP complements: BC859 and BC860. +0.12.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 12 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.10.97 -0.1 +0.11.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1.Base 2.Emitter 3.collector 0-0.1 +0.10.38 -0

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BC850B, BC849. Please refer to the document for exact specifications by model.

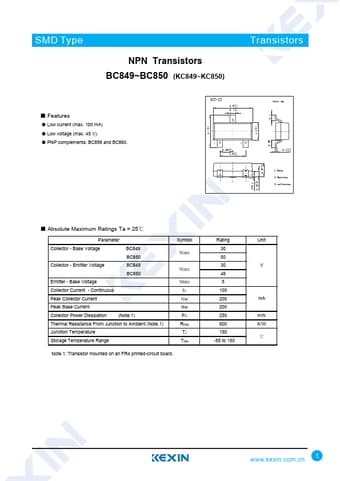

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC850B, BC849
Manufacturer
Kexin
File Size
1.03 MB
Datasheet
BC849-Kexin.pdf
Description
NPN Transistors
Note
This datasheet PDF includes multiple part numbers: BC850B, BC849.
Please refer to the document for exact specifications by model.
