BAT42WS - SURFACE MOUNT SCHOTTKY BARRIER DIODE

Features

  • Low Switching Fast Switching PN Junction Gurad Ring for Transient and ESD Protection Designed for Surface Mount.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAT42WS Silicon Diode BLUE ROCKET ELECTRONICS
BAT42WS Schottky Diodes LGE
BAT42WS SILICON PLANAR SCHOTTKY BARRIER DIODES CDIL
BAT42WS SMALL SIGNAL DIODE Rectron
BAT42WS SURFACE MOUNT SCHOTTKY BARRIER DIODE SEMTECH

Other Datasheets by Kexin Semiconductor

Part Number Description
BAT42W SURFACE MOUNT SCHOTTKY BARRIER DIODE
BAT43WS SURFACE MOUNT SCHOTTKY BARRIER DIODE
BAT54 Schottky Diodes
BAT54A Schottky Diodes
BAT54ADW Schottky Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

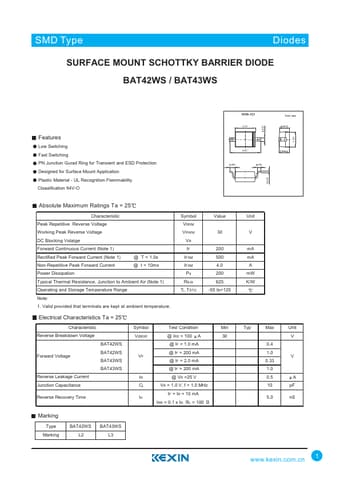

SMD Type Diodes SURFACE MOUNT SCHOTTKY BARRIER DIODE BAT42WS / BAT43WS Features Low Switching Fast Switching PN Junction Gurad Ring for Transient and ESD Protection Designed for Surface Mount Application Plastic Material - UL Recognition Flammability Clsaaification 94V-O SOD-323 1.7+0.1 -0.1 Unit: mm 0.85+0.05 -0.05 +0.050.3 -0.05 +0.11.3 -0.1 2.6+0.1 -0.1 0.475 0.375 1.0max +0.050.1 -0.02 Absolute Maximum Ratings Ta = 25 Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Volatge Forward Continuous Current (Note 1) Rectified Peak Forward Current (Note 1) @ T < 1.
