2SK1582 - N-Channel MOSFET

Kexin

📥 Download Datasheet

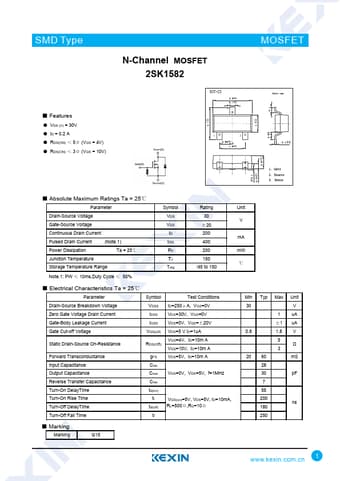

2SK1582 Datasheet Preview — Preview of 2SK1582 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SK1582
Manufacturer	Kexin
File Size	904.31 KB
Description	N-Channel MOSFET
Datasheet	2SK1582-Kexin.pdf

2SK1582 Product details

Features

s.
VDS (V) = 30V.
ID = 0.2 A.
RDS(ON) ＜ 5Ω (VGS = 4V).
RDS(ON) ＜ 3Ω (VGS = 10V) N-Channel MOSFET 2SK1582 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 +0.12.4 -0.1 12 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.11.3 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 +0.10.97 -0.1 0-0.1 +0.10.38 -0.1 1. Gate 2. Source 3. Drain.
Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipat.
