2SD965A - NPN Transistors

Name: 2SD965A
SKU: 2SD965A-993847

Kexin

The 2SD965A by Kexin is a NPN Transistors. Below is the official datasheet preview.

Datasheet Details

Part number	2SD965A
Manufacturer	Kexin
File Size	279.06 KB
Description	NPN Transistors
Datasheet	2SD965A-Kexin.pdf

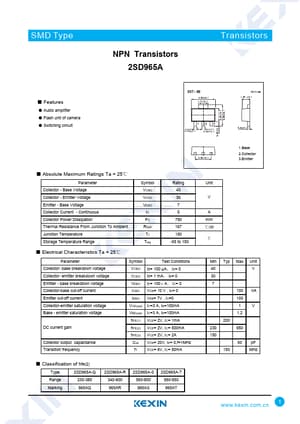

Additional preview pages of the 2SD965A datasheet.

s.
Audio amplifier.
Flash unit of camera.
Switching circuit 1.70 0.1 0.42 0.1 0.46 0.1.
Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Thermal Resistance From Junction To Ambient Junction Temperature Storage Temperature Range Symbol VCBO VCEO VEBO IC PC RθJA TJ Tstg Rating 40 30 7 5 750 167 150 -55 to 150.
Electrical Characteristics T.
