2SD1898 - Power Transistor

Kexin

📥 Download Datasheet

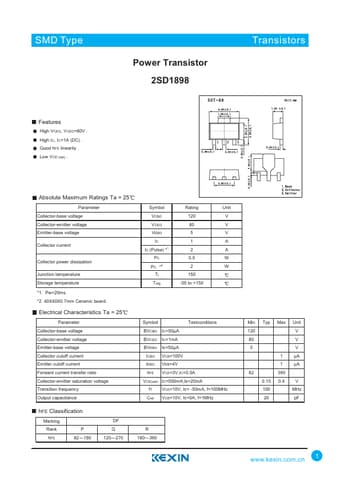

2SD1898 Datasheet Preview — Preview of 2SD1898 PDF

Datasheet Details

Part number	2SD1898
Manufacturer	Kexin
File Size	46.97 KB
Description	Power Transistor
Datasheet	2SD1898-Kexin.pdf

2SD1898 Product details

Features

High VCEO, VCEO=80V . High IC, IC=1A (DC) . Good hFE linearity . Low VCE (sat) . Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature.
1. Pw=20ms.
2. 40X40X0.7mm Ceramic board. Electrical Characteristics Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector cutoff current Emitter cutoff current For.
