2SC4521 - NPN Epitaxial Planar Silicon Transistor

Features

  • Adoption of FBET, MBIT process. Large current capacity. Low collector-to-emitter saturation voltage. Fast switching speed. Small-sized package. Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current (pulse) Collector dissipation,mounted on ceramic board(250mm2X0.8mm) Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg Rating 60 45 5 3 6 1.5 150 -55 to +150 Unit V V V A A W.

📥 Download Datasheet

📁 Similar Datasheet

  • 2SC4521 - NPN TRANSISTOR (Sanyo Semicon Device)
  • 2SC4520 - NPN TRANSISTOR (Sanyo Semicon Device)
  • 2SC4522 - NPN TRANSISTOR (Sanyo Semicon Device)
  • 2SC4523 - NPN TRANSISTOR (Sanyo Semicon Device)
  • 2SC4524 - NPN TRANSISTOR (Mitsubishi Electric Semiconductor)
  • 2SC4525 - NPN TRANSISTOR (Mitsubishi Electric Semiconductor)
  • 2SC4526 - NPN TRANSISTOR (Mitsubishi Electric Semiconductor)
  • 2SC4527 - NPN TRANSISTOR (Toshiba Semiconductor)
  • 2SC4528 - Silicon NPN Power transistor (Panasonic)
  • 2SC4529 - Silicon NPN Transistor (Hitachi)
Other Datasheets by Kexin

Full PDF Text Transcription

Click to expand full text

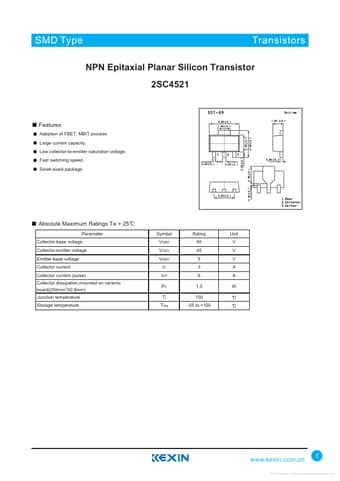

SMD Type Transistors NPN Epitaxial Planar Silicon Transistor 2SC4521 Features Adoption of FBET, MBIT process. Large current capacity. Low collector-to-emitter saturation voltage. Fast switching speed. Small-sized package. Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current (pulse) Collector dissipation,mounted on ceramic board(250mm2X0.8mm) Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg Rating 60 45 5 3 6 1.5 150 -55 to +150 Unit V V V A A W www.kexin.com.cn 1 Free Datasheet http://www.datasheet4u.
