2SC4215 - Silicon NPN Transistor

Name: 2SC4215
SKU: 2SC4215-742111

Kexin

The 2SC4215 by Kexin is a Silicon NPN Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	2SC4215
Manufacturer	Kexin
File Size	63.02 KB
Description	Silicon NPN Transistor
Datasheet	2SC4215_Kexin.pdf

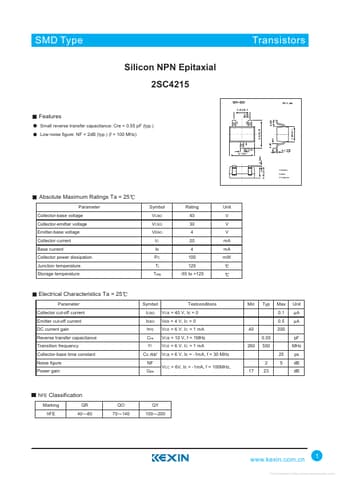

Additional preview pages of the 2SC4215 datasheet.

Small reverse transfer capacitance: Cre = 0.55 pF (typ. ) Low noise figure: NF = 2dB (typ. ) (f = 100 MHz) 1 Emitter 2 Base 3 Collector Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 40 30 4 20 4 100 125 -55 to +125 Unit V V V mA mA mW Electrical Characteristics Ta = 25 Parameter Collec.
