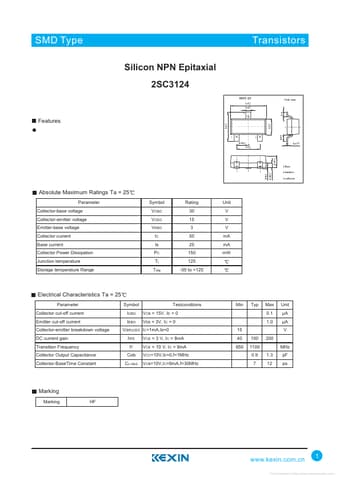

2SC3124 - Silicon NPN Transistor

Kexin

Datasheet Details

1 +0.1 0.95-0.1 +0.1 1.9-0.1 2 0.55 0.4 3 +0.05 0.1-0.01 +0.1 0.97-0.1 1.Base 2.Emitter 3.collector Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector Power Dissipation Junction temperature Storage temperature Range Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 30 15 3 50 25 150 125 -55 to +125 Unit V V V mA mA mW Electrical Characteristics Ta = 25 Parameter Collector cut-off current.
