2SC3123 - Silicon NPN Transistor

Name: 2SC3123
SKU: 2SC3123-741925

Kexin

The 2SC3123 by Kexin is a Silicon NPN Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	2SC3123
Manufacturer	Kexin
File Size	52.16 KB
Description	Silicon NPN Transistor
Datasheet	2SC3123_Kexin.pdf

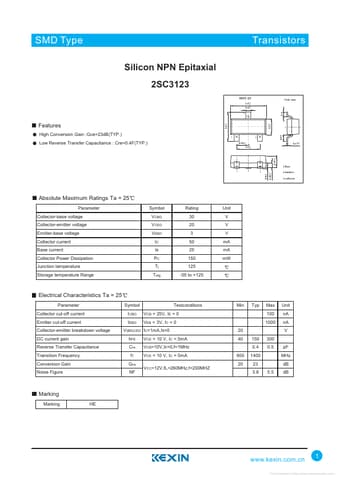

Additional preview pages of the 2SC3123 datasheet.

0.4 3 +0.05 0.1-0.01 +0.1 0.97-0.1 1.Base 2.Emitter 3.collector Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector Power Dissipation Junction temperature Storage temperature Range Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 30 20 3 50 25 150 125 -55 to +125 Unit V V V mA mA mW Electrical Characteristics Ta = 25 Parameter Collector cut-off current Emitter cut-off current Collector-emitt.
