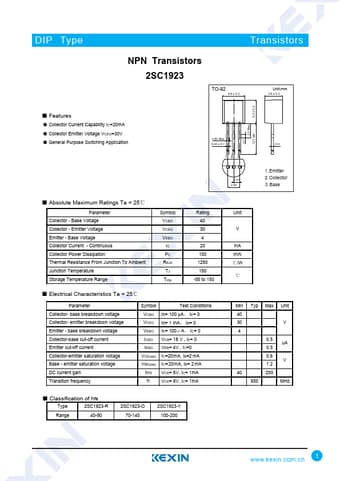

DIP Type
Transistors
NPN Transistors 2SC1923
TO-92 4.8 ± 0.3
Unit:mm
3.8 ± 0.3
5.0 ± 0.2
■ Features
● Collector Current Capability IC=20mA ● Collector Emitter Voltage VCEO=30V ● General Purpose Switching Application
0.7 2.3 Max
12.7 Min
0.60 Max 0.45 ± 0.1
12 3
1.27 2.54
0.5
1.Emitter 2.Collector 3.
