2SB1308 - Power Transistor

Features

  • Low saturation voltage, typically VCE(sat) = -0.45V (Max. ) at IC/IB = -1.5A / -0.15A. Excellent DC current gain characteristics. Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current(Pulse) Collector power dissipation Junction temperature Storage temperature.
  • Single pulse, Pw=10ms Symbol VCBO VCEO VEBO IC ICP.
  • PC Tj Tstg Rating -30 -20 -6 -3 -5 0.5 150 -55 to +150 Unit V V V A A W Electrica.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1308 Power Transistor Rohm
2SB1308 Power Transistor GME
2SB1308 PNP Transistor WILLAS
2SB1308 Plastic-Encapsulated Transistors TRANSYS
2SB1308 TRANSISTOR Jin Yu Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SB1308-HF PNP Transistors
2SB1302 PNP Epitaxial Planar Silicon Transistors
2SB1386 Low Frequency Transistor
2SB1386-HF PNP Transistors
2SB1394 PNP/NPN Epitaxial Planar Silicon Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

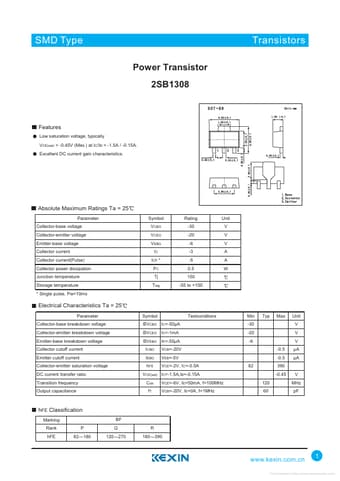

SMD Type Power Transistor 2SB1308 Transistors Features Low saturation voltage, typically VCE(sat) = -0.45V (Max.) at IC/IB = -1.5A / -0.15A. Excellent DC current gain characteristics. Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current(Pulse) Collector power dissipation Junction temperature Storage temperature * Single pulse, Pw=10ms Symbol VCBO VCEO VEBO IC ICP * PC Tj Tstg Rating -30 -20 -6 -3 -5 0.
