2SB1118 - Transistor

Kexin

📥 Download Datasheet

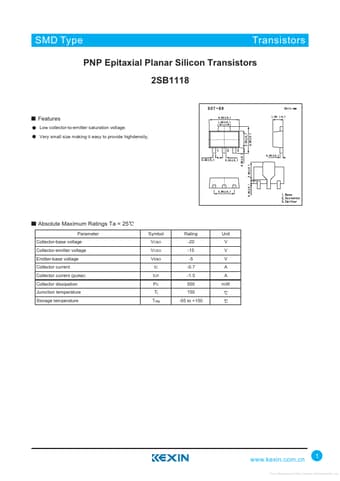

2SB1118 Datasheet Preview — Preview of 2SB1118 PDF

datasheet Preview Page 2

Datasheet Details

Part number	2SB1118
Manufacturer	Kexin
File Size	70.03 KB
Description	Transistor
Datasheet	2SB1118_Kexin.pdf

2SB1118 Product details

Features

Low collector-to-emitter saturation voltage. Very small size making it easy to provide highdensity, Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current (pulse) Collector dissipation Jumction temperature Storage temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg Rating -20 -15 -5 -0.7 -1.5 500 150 -55 to +150 Unit V V V A A mW www. kexin. com. cn 1 Free Datasheet http://www. datasheet4u. com SMD Type.
