1N4751A - Zener Diodes

Download the 1N4751A datasheet PDF. This datasheet also covers the 1N4728A variant, as both devices belong to the same zener diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • s.
  • Zener Voltage Range 3.3 to 56 Volts.
  • Through-Hole Device Type Mounting.
  • Hermetically Sealed Glass.
  • Compression Bonded Construction.
  • RoHS Compliant 0.107 (2.7) 0.080 (2.0) DIA. Diodes 1.0 (25.4) MIN. 0.205 (5.2) 0.160 (4.1).
  • Absolute Maximum Ratings Ta = 25℃ Parameter Power Dissipation Thermal Resistance Junction to Ambient Thermal Resistance Junction to Lead Junction Temperature Storage Temperature range Symbol Pd RθJA RθJL TJ Tstg Rating 1 100 53.5 200 -55.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N4728A-Kexin.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
1N4751A Zener Diode Formosa MS
1N4751A Zener Diodes ON Semiconductor
1N4751A HERMETICALLY SEALED GLASS ZENER VOLTAGE REGULATORS MIC
1N4751A Zener Diodes Vishay
1N4751A SILICON ZENER DIODES Central Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
1N4750A Zener Diodes
1N4752A Zener Diodes
1N4753A Zener Diodes
1N4754A Zener Diodes
1N4755A Zener Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

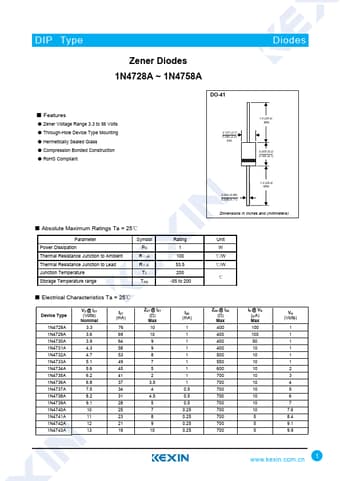

DIP Type Zener Diodes 1N4728A ~ 1N4758A DO-41 ■ Features ● Zener Voltage Range 3.3 to 56 Volts ● Through-Hole Device Type Mounting ● Hermetically Sealed Glass ● Compression Bonded Construction ● RoHS Compliant 0.107 (2.7) 0.080 (2.0) DIA. Diodes 1.0 (25.4) MIN. 0.205 (5.2) 0.160 (4.1) ■ Absolute Maximum Ratings Ta = 25℃ Parameter Power Dissipation Thermal Resistance Junction to Ambient Thermal Resistance Junction to Lead Junction Temperature Storage Temperature range Symbol Pd RθJA RθJL TJ Tstg Rating 1 100 53.5 200 -55 to 200 ■ Electrical Characteristics Ta = 25℃ Device Type 1N4728A 1N4729A 1N4730A 1N4731A 1N4732A 1N4733A 1N4734A 1N4735A 1N4736A 1N4737A 1N4738A 1N4739A 1N4740A 1N4741A 1N4742A 1N4743A VZ @ IZT (Volts) Nominal 3.3 3.6 3.9 4.3 4.7 5.1 5.6 6.2 6.8 7.5 8.2 9.
