C1210C103K5GAC - CERAMIC CHIP CAPACITORS

Key Features

  • C0G (NP0), X7R, X5R, Z5U and Y5V Dielectrics.
  • 10, 16, 25, 50, 100 and 200 Volts.
  • Standard End Metalization: Tin-plate over nickel barrier.
  • Available Capacitance Tolerances: ±0.10 pF; ±0.25 pF; ±0.5 pF; ±1%; ±2%; ±5%; ±10%; ±20%; and +80%-20% KEMET ®.
  • Tape and reel packaging per EIA481-1. (See page 61 for specific tape and reel information. ) Bulk Cassette packaging (0402, 0603, 0805 only) per IEC60286-6 and EIAJ 7201.

📥 Download Datasheet

Datasheet Details

Part number C1210C103K5GAC
Manufacturer Kemet Corporation
File Size 82.53 KB
Description CERAMIC CHIP CAPACITORS
Datasheet download datasheet C1210C103K5GAC Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
C1210Cxxxx Ceramic Chip Capacitors Kemet Electronics
C1210 Process C1210 CMOS 1.2mm Zero Threshold Devices IMP Inc
C1212F DC CORE MOTOR CONSTAR
C1213 Silicon NPN Epitaxial Type Transistor Renesas
C1213A Silicon NPN Epitaxial Type Transistor Renesas

Other Datasheets by Kemet Corporation

Part Number Description
C1210C103K1RAC CERAMIC CHIP CAPACITORS
C1210C103K2RAC CERAMIC CHIP CAPACITORS
C1210C103G5GAC CERAMIC CHIP CAPACITORS
C1210C103J1GAC CERAMIC CHIP CAPACITORS
C1210C103J5GAC CERAMIC CHIP CAPACITORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

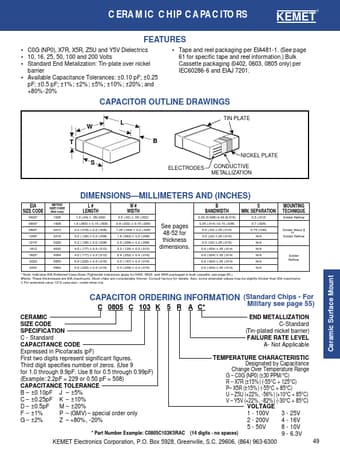

CERAMIC CHIP CAPACITORS FEATURES • C0G (NP0), X7R, X5R, Z5U and Y5V Dielectrics • 10, 16, 25, 50, 100 and 200 Volts • Standard End Metalization: Tin-plate over nickel barrier • Available Capacitance Tolerances: ±0.10 pF; ±0.25 pF; ±0.5 pF; ±1%; ±2%; ±5%; ±10%; ±20%; and +80%-20% KEMET ® • Tape and reel packaging per EIA481-1. (See page 61 for specific tape and reel information.) Bulk Cassette packaging (0402, 0603, 0805 only) per IEC60286-6 and EIAJ 7201. CAPACITOR OUTLINE DRAWINGS W T S ELECTRODES L B TIN PLATE NICKEL PLATE CONDUCTIVE METALLIZATION DIMENSIONS—MILLIMETERS AND (INCHES) EIA SIZE CODE 0402* 0603* 0805* 1206* 1210* 1812 1825* 2220 2225 METRIC SIZE CODE (Ref only) 1005 1608 2012 3216 3225 4532 4564 5650 5664 L# LENGTH 1.0 (.04) ± .05(.002) 1.6 (.063) ± 0.15 (.006) 2.
