C0805C104xxxx, C0805C104M5UAC CERAMIC CHIP CAPACITORS

C0805C104xxxx Description

KEMET ® CERAMIC CHIP/STANDARD .

C0805C104xxxx Features

* C0G (NP0), X7R, Z5U and Y5V Dielectrics
* 10, 16, 25, 50, 100 and 200 Volts
* Standard End Metalization: Tin-plate over nickel barrier
* Available Capacitance Tolerances: ±0.10 pF; ±0.25 pF; ±0.5 pF; ±1%; ±2%; ±5%; ±10%; ±20%; and +80%-20%
* Tape and reel

C0805C104xxxx Applications

* EIA preferred chip sizes KEMET Electronics Corporation, P. O. Box 5928, Greenville, S. C. 29606, (864) 963-6300 41 Ceramic Surface Mount 334 334 394 394 474 474 564 684 824 105 125 155 185 225

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: C0805C104xxxx, C0805C104M5UAC. Please refer to the document for exact specifications by model.

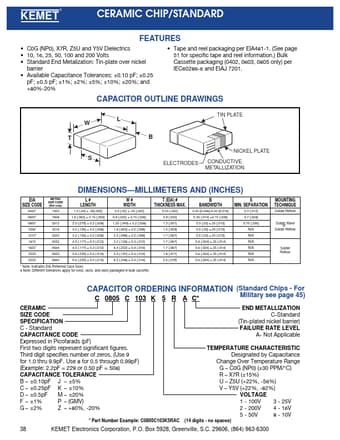

datasheet Preview Page 2

Datasheet Details

Part number
C0805C104xxxx, C0805C104M5UAC
Manufacturer
Kemet Corporation
File Size
39.90 KB
Datasheet
C0805C104M5UAC_KemetCorporation.pdf
Description
CERAMIC CHIP CAPACITORS
Note
This datasheet PDF includes multiple part numbers: C0805C104xxxx, C0805C104M5UAC.
Please refer to the document for exact specifications by model.
