1N60PW - Silicon Schottky Barrier Diode

📥 Download Datasheet

Preview of 1N60PW PDF
datasheet Preview Page 2

Datasheet Details

Part number 1N60PW
Manufacturer KUU
File Size 309.14 KB
Description Silicon Schottky Barrier Diode
Datasheet download datasheet 1N60PW-KUU.pdf

1N60PW Product details

Description

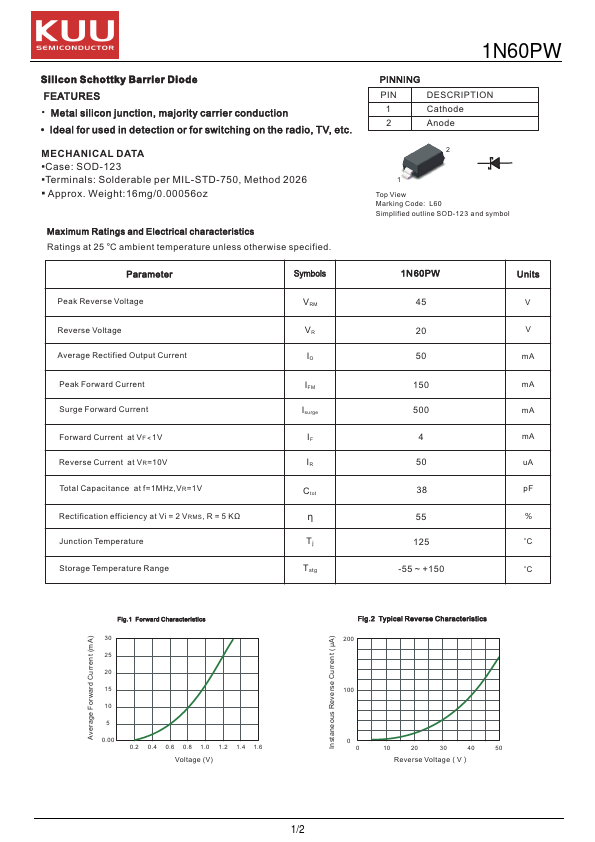

1 Cathode 2 Anode 2 1 Top View Marking Code: L60 Simplified outline SOD-123 and symbol 1N60PW 45 20 50 150 500 4 50 38 55 125 -55 ~ +150 Units V V mA mA mA mA uA pF ％ °C °C Average Forward Current (mA) Instaneous Reverse Current ( μA) Fig.1 Forward Characteristics 30 25 20 15 10 5 0.00 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 Voltage (V) Fig.2 Typical Reverse Characteristics 200 100 0 0 10 20 30 40 50 Reverse Voltage（V） 1/2 PACKAGE OUTLINE Plastic surface mounted package; 2 leads E
