DL2R7407E - Electric Double Layer Capacitors

Download the DL2R7407E datasheet PDF. This datasheet also covers the DL2R5107 variant, as both devices belong to the same electric double layer capacitors family and are provided as variant models within a single manufacturer datasheet.

Key Features

|.
Snap-in type terminals.
High energy and high power.
Low temperature(-40℃) usage available for 2.7V products.
High temperature(70℃) usage available for 2.5V products.
Pb-free and RoHS compliant |.

📥 Download Datasheet

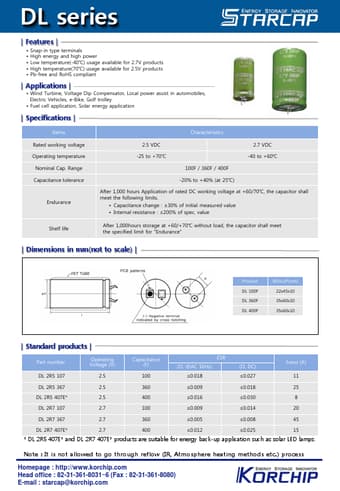

DL2R7407E electric double layer capacitors by KORCHIP - Datasheet Preview — Note: The manufacturer provides a single datasheet file (DL2R5107-KORCHIP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	DL2R7407E
Manufacturer	KORCHIP
File Size	195.52 KB
Description	Electric Double Layer Capacitors
Datasheet	DL2R7407E Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
DL201	SILICON RECTIFIER DIODES	EIC
DL202	SILICON RECTIFIER DIODES	EIC
DL203	SILICON RECTIFIER DIODES	EIC
DL204	SILICON RECTIFIER DIODES	EIC
DL205	SILICON RECTIFIER DIODES	EIC

Other Datasheets by KORCHIP

Part Number	Description
DL2R7107	Electric Double Layer Capacitors
DL2R7367	Electric Double Layer Capacitors
DL2R5107	Electric Double Layer Capacitors
DL2R5367	Electric Double Layer Capacitors
DL2R5407E	Electric Double Layer Capacitors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

DL series | Features | • Snap-in type terminals • High energy and high power • Low temperature(-40℃) usage available for 2.7V products • High temperature(70℃) usage available for 2.5V products • Pb-free and RoHS compliant | Applications | • Wind Turbine, Voltage Dip Compensator, Local power assist in automobiles, Electric Vehicles, e-Bike, Golf trolley • Fuel cell application, Solar energy application | Specifications | Items Rated working voltage Operating temperature Nominal Cap. Range Capacitance tolerance Endurance Characteristics 2.5 VDC -25 to +70℃ 100F / 360F / 400F -20% to +40% (at 25℃) 2.7 VDC -40 to +60℃ After 1,000 hours Application of rated DC working voltage at +60/70℃, the capacitor shall meet the following limits.
