SN7500P, SN7500 Pulse Width Modulation

SN7500P Description

SN7500x/P Pulse Width Modulation ◈ .
The SN7500 is a monolithic integrated circuit which includes all the necessary building blocks for the design of pulse width modulate(PWM) switching p.

SN7500P Features

* ◈ Package Type
* Internal Regulator Provides a Stable 5V Reference Supply Trimmed to ±1% or ±2% Accuracy
* Uncommitted output transistors capable of 200mA source or sink
* Internal protection from double pulsing of out-puts with narrow pulse widths or with supply voltages below specifi

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SN7500P, SN7500. Please refer to the document for exact specifications by model.

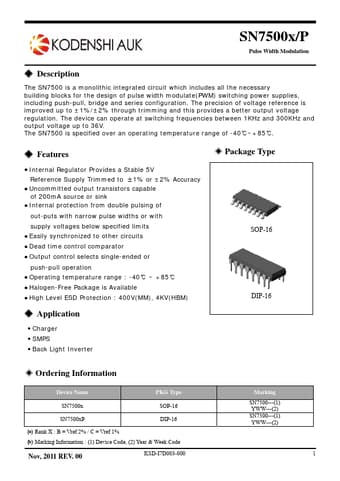

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SN7500P, SN7500
Manufacturer
KODENSHI
File Size
463.21 KB
Datasheet
SN7500-KODENSHI.pdf
Description
Pulse Width Modulation
Note
This datasheet PDF includes multiple part numbers: SN7500P, SN7500.
Please refer to the document for exact specifications by model.
