SN324, Low Power Quad OP AMP

www.DataSheet.co.kr Low Power Quad OP AMP Semiconductor http:// www.auk.co.kr SN324/P .
The SN324/P is quad operational amplifiers with true differential inputs.

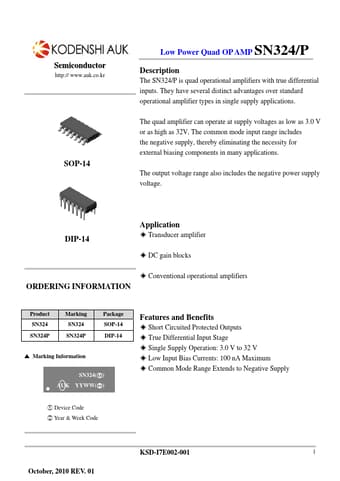

datasheet Preview Page 1 from Datasheet4u.com

SN324_KODENSHIKOREA.pdf

SN324 Datasheet Preview — Preview of SN324 PDF

Datasheet Details

Part number:

SN324

Manufacturer:

KODENSHI KOREA

File Size:

429.93 KB

Description:

Low Power Quad OP AMP

Features

* ◈ Short Circuited Protected Outputs ◈ True Differential Input Stage ◈ Single Supply Operation: 3.0 V to 32 V ◈ Low Input Bias Currents: 100 nA Maximum ◈ Common Mode Range Extends to Negative Supply ▲ Marking Information SN324(①) AUK YYWW(②) ① Device Code ② Year & Week Code KSD-I7E002-001 October,

Applications

* The quad amplifier can operate at supply voltages as low as 3.0 V or as high as 32V, The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. SOP-14 The output voltage range also includes the negative power su
