KKA7050 - LOW VOLTAGE MONO/STEREO POWER AMPLIFIER

Description

The KKA7050 is a low voltage audio amplifier for small radios with headphones (such as watch, pen and pocket radios) in mono (bridge-tied load) or stereo applications.

Features

  • Limited to battery supply.

📥 Download Datasheet

Datasheet Details

Part number KKA7050
Manufacturer KODENSHI KOREA
File Size 268.65 KB
Description LOW VOLTAGE MONO/STEREO POWER AMPLIFIER
Datasheet download datasheet KKA7050 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by KODENSHI KOREA

Part Number Description
KKA7052 MONO OUTPUT AMPLIFIER
KKA7053N 2 x 1 W portable/mains-fed stereo power amplifier
KKA7056 3W Mono BTL Audio Output Amplifier
KKA7056B 5W MONO BTL AUDIO AMPLIFIER
KKA7496L 2W+2W AMPLIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

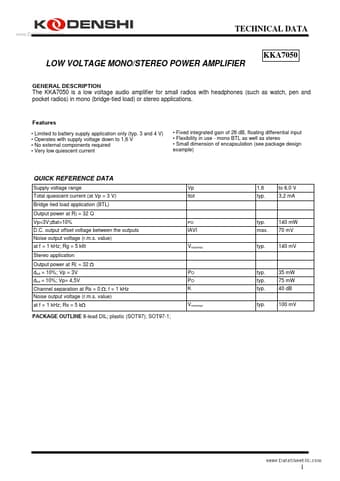

www.DataSheet4U.com TECHNICAL DATA KKA7050 LOW VOLTAGE MONO/STEREO POWER AMPLIFIER GENERAL DESCRIPTION The KKA7050 is a low voltage audio amplifier for small radios with headphones (such as watch, pen and pocket radios) in mono (bridge-tied load) or stereo applications. Features • Limited to battery supply application only (typ. 3 and 4 V) • Operates with supply voltage down to 1,6 V • No external components required • Very low quiescent current • Fixed integrated gain of 26 dB, floating differential input • Flexibility in use - mono BTL as well as stereo • Small dimension of encapsulation (see package design example) QUICK REFERENCE DATA Supply voltage range Total quiescent current (at Vp = 3 V) Bridge tied load application (BTL) Output power at R) = 32 Q Vp=3V;dtat=10% D.C.
