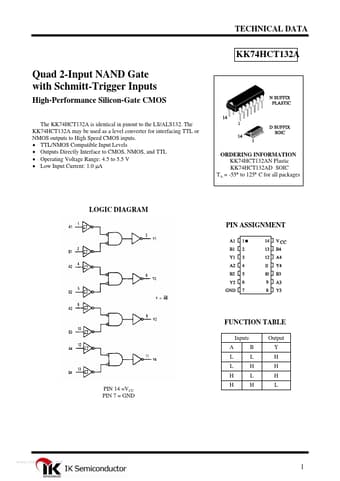

TECHNICAL DATA
KK74HCT132A
Quad 2-Input NAND Gate with Schmitt-Trigger Inputs
High-Performance Silicon-Gate CMOS
The KK74HCT132A is identical in pinout to the LS/ALS132. The KK74HCT132A may be used as a level converter for interfacing TTL or NMOS outputs to High Speed CMOS inputs. • TTL/NMOS Compatible Input Levels • Outputs Directly Interface to CMOS, NMOS, and TTL • Operating Voltage Range: 4.5 to 5.5 V • Low Input Current: 1.0 µA
ORDERING INFORMATION KK74HCT132AN Plastic KK74HCT132AD SOIC TA = -55° to 125° C for all packages
LOGIC DIAGRAM PIN ASSIGNMENT
FUNCTION TABLE
Inputs A L L H PIN 14 =VCC PIN 7 = GND H B L H L H Output Y H H H L
