KK74HC245A Datasheet - KODENSHI KOREA

KK74HC245A Octal 3-State Noninverting Bus Transceiver

TECHNICAL DATA KK74HC245A Octal 3-State Noninverting Bus Transceiver High-Performance Silicon-Gate CMOS The KK74HC245A is identical in pinout to the LS/ALS245. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. The KK74HC245A is a 3-state noninverting transceiver that is used for 2-way asynchronous communication between data buses. The device has an active-low Output Enable pin, which is used to place the I/O ports in.

KK74HC245A Datasheet (350.02 KB)

Preview of KK74HC245A PDF

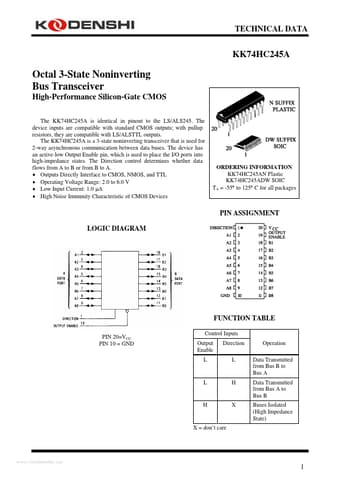

KK74HC245A Datasheet Preview Page 2 KK74HC245A Datasheet Preview Page 3

Datasheet Details

Part number:

KK74HC245A

Manufacturer:

KODENSHI KOREA

File Size:

350.02 KB

Description:

Octal 3-state noninverting bus transceiver.
