KTS1012 - Load Switching

KEXIN

📥 Download Datasheet

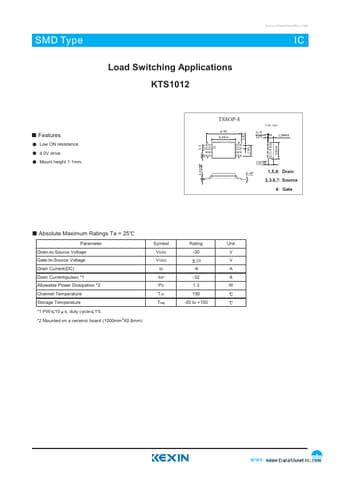

KTS1012 Datasheet Preview — Preview of KTS1012 PDF

datasheet Preview Page 2

Datasheet Details

Part number	KTS1012
Manufacturer	KEXIN
File Size	70.41 KB
Description	Load Switching
Datasheet	KTS1012_KEXIN.pdf

KTS1012 Product details

Features

Low ON resistance. 4.0V drive. Mount height 1.1mm. 1,5,8: Drain 2,3,6,7: Source 4: Gate Absolute Maximum Ratings Ta = 25 Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current(DC) Drain Current(pulse).
1 Allowable Power Dissipation.
2 Channel Temperature Storage Temperature.
1 PW 10 s, duty cycle 1% Symbol VDSS VGSS ID IDP PD Tch Tstg Rating -30 20 -6 -32 1.3 150 -55 to +150 Unit V V A A W.
2 Mounted on a ceramic board (1000mm2X0.8mm) www. kexin. com. cn 1 www. D.
