MBR3045CT - SCHOTTKY BARRIER TYPE DIODE

Features

  • Average Output Rectified Current : IO=30A. Repetitive Peak Reverse Voltage : VRRM=45V. Fast Reverse Recovery Time : trr=35ns.

📥 Download Datasheet

Datasheet Details

Part number MBR3045CT
Manufacturer KEC
File Size 435.22 KB
Description SCHOTTKY BARRIER TYPE DIODE
Datasheet download datasheet MBR3045CT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MBR3045CT Schottky Barrier Rectifier Inchange Semiconductor
MBR3045CT SCHOTTKY BARRIER RECTIFIER Pan Jit International
MBR3045CT 30A High Power Schottky Barrier Rectifiers CITC
MBR3045CT Schottky Barrier Rectifier Micro Commercial Components
MBR3045CT Dual Common Cathode Schottky Rectifier Vishay Siliconix

Other Datasheets by KEC

Part Number Description
MBR10150CT SCHOTTKY BARRIER TYPE DIODE
MBR1045CT Schottky Rectifier
MBR1545CT SCHOTTKY BARRIER TYPE DIODE
MBR1560CT SCHOTTKY BARRIER TYPE DIODE
MBR20200CT SCHOTTKY BARRIER TYPE DIODE

Full PDF Text Transcription

Click to expand full text

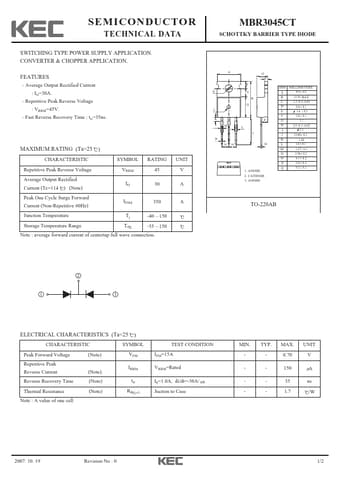

SEMICONDUCTOR TECHNICAL DATA SWITCHING TYPE POWER SUPPLY APPLICATION. CONVERTER & CHOPPER APPLICATION. FEATURES Average Output Rectified Current : IO=30A. Repetitive Peak Reverse Voltage : VRRM=45V. Fast Reverse Recovery Time : trr=35ns. MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL RATING Repetitive Peak Reverse Voltage Average Output Rectified Current (Tc=114 ) (Note) VRRM IO 45 30 Peak One Cycle Surge Forward Current (Non-Repetitive 60Hz) IFSM 350 Junction Temperature Tj -40 150 Storage Temperature Range Tstg -55 150 Note : average forward current of centertap full wave connection. UNIT V A A MBR3045CT SCHOTTKY BARRIER TYPE DIODE A E I K M D NN F G B Q L J O C P H 1. ANODE 2. CATHODE 3. ANODE DIM A B C D E F G H I J K L M N O P Q MILLIMETERS 9.9 +_ 0.2 15.
