KTC9012SC - EPITAXIAL PLANAR PNP TRANSISTOR

Features

  • Excellent hFE Linearity. Complementary to KTC9013SC. KTC9012SC.

📥 Download Datasheet

📁 Similar Datasheet

  • KTC-105 - Black-and-White Camera Installation (Kalatel)
  • KTC-105 - Black-and-White Camera (Kalatel)
  • KTC-105 - Black-and-White Legacy Camera (GE)
  • KTC1003 - Silicon NPN Power Transistors (Inchange Semiconductor)
  • KTC1027 - NPN Transistor (JCET)
  • KTC1027 - NPN Plastic Encapsulated Transistor (SeCoS)
  • KTC1027 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • KTC144 - Tradesman Series Manual (Black & Decker)
  • KTC200 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • KTC2016 - NPN Transistors (Kexin)
Other Datasheets by KEC
  • KTC9012S - EPITAXIAL PLANAR PNP TRANSISTOR
  • KTC9012 - EPITAXIAL PLANAR PNP TRANSISTOR
  • KTC9011 - EPITAXIAL PLANAR NPN TRANSISTOR
  • KTC9013 - EPITAXIAL PLANAR NPN TRANSISTOR
  • KTC9013SC - EPITAXIAL PLANAR NPN TRANSISTOR
  • KTC9014 - EPITAXIAL PLANAR NPN TRANSISTOR
  • KTC9014A - EPITAXIAL PLANAR NPN TRANSISTOR
  • KTC9014S - EPITAXIAL PLANAR NPN TRANSISTOR

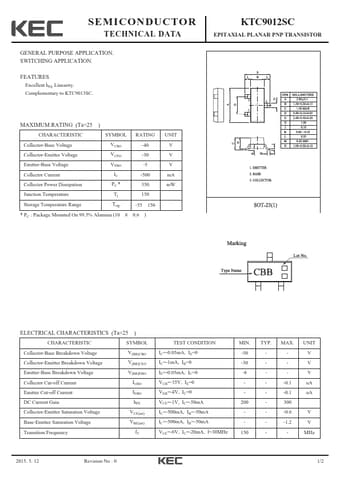

Full PDF Text Transcription

Click to expand full text
SEMICONDUCTOR TECHNICAL DATA GENERAL PURPOSE APPLICATION. SWITCHING APPLICATION. FEATURES Excellent hFE Linearity. Complementary to KTC9013SC. KTC9012SC EPITAXIAL PLANAR PNP TRANSISTOR MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL RATING Collector-Base Voltage Collector-Emitter Voltage VCBO VCEO -40 -30 Emitter-Base Voltage VEBO -5 Collector Current IC -500 Collector Power Dissipation PC * 350 Junction Temperature Tj 150 Storage Temperature Range Tstg -55 150 * PC : Package Mounted On 99.5% Alumina (10 8 0.
