KTC3770S - EPITAXIAL PLANAR NPN TRANSISTOR

Features

  • Low Noise Figure, High Gain. NF=1.1dB, |S21e|2=11dB (f=1GHz).

📥 Download Datasheet

📁 Similar Datasheet

  • KTC3770T - RF/VHF/UHF Transistor VHF/UHF Wide Band Amplifier Application (KEC semiconductor)
  • KTC3790U - High Voltage MOSFETs (KEC semiconductor)
  • KTC3190 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • KTC3192 - NPN Transistor (JCET)
  • KTC3192 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • KTC3194 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • KTC3197 - NPN Transistor (SeCoS)
  • KTC3198 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • KTC3198 - Transistors (Jiangsu Changjiang)
  • KTC3198 - NPN Plastic Encapsulated Transistor (SeCoS)
Other Datasheets by KEC
  • KTC3770U - EPITAXIAL PLANAR NPN TRANSISTOR
  • KTC3770UL - EPITAXIAL PLANAR NPN TRANSISTOR
  • KTC3770V - EPITAXIAL PLANAR NPN TRANSISTOR
  • KTC3708U - EPITAXIAL PLANAR NPN TRANSISTOR
  • KTC3730V - EPITAXIAL PLANAR NPN TRANSISTOR
  • KTC3780U - EPITAXIAL PLANAR NPN TRANSISTOR
  • KTC3790S - EPITAXIAL PLANAR NPN TRANSISTOR
  • KTC3003 - TRIPLE DIFFUSED NPN TRANSISTOR

Full PDF Text Transcription

Click to expand full text

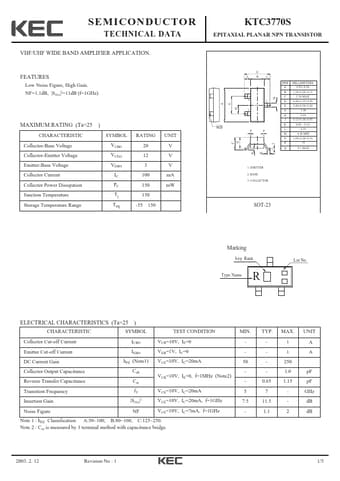

SEMICONDUCTOR TECHNICAL DATA VHF/UHF WIDE BAND AMPLIFIER APPLICATION. FEATURES Low Noise Figure, High Gain. NF=1.1dB, |S21e|2=11dB (f=1GHz). MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature VCBO VCEO VEBO IC PC Tj Storage Temperature Range Tstg RATING 20 12 3 100 150 150 -55 150 UNIT V V V mA mW KTC3770S EPITAXIAL PLANAR NPN TRANSISTOR E L BL DIM MILLIMETERS A 2.93+_ 0.20 B 1.30+0.20/-0.15 A G H D 23 C 1.30 MAX D 0.40+0.15/-0.05 E 2.40+0.30/-0.20 1 G 1.90 H 0.95 J 0.13+0.10/-0.05 K 0.00 ~ 0.10 Q PP L 0.55 M 0.20 MIN N 1.00+0.20/-0.10 C N K J P7 Q 0.1 MAX M 1. EMITTER 2. BASE 3.
