SS215 - SCHOTTKY BARRIER RECTIFIER

SS215 Description

SS215 THRU SS220 SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 150 to 200 Volts Forward Current - 2.0 Ampere .

SS215 Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

SS215 Applications

* Metal silicon junction,majority carrier conduction
* Low reverse leakage
* Built-in strain relief,ideal for automated placement
* High forward surge current capability
* High temperature soldering guaranteed: 250 C/10 seconds at terminals MECHANICAL DATA Case: JEDEC DO-214AC mo

📥 Download Datasheet

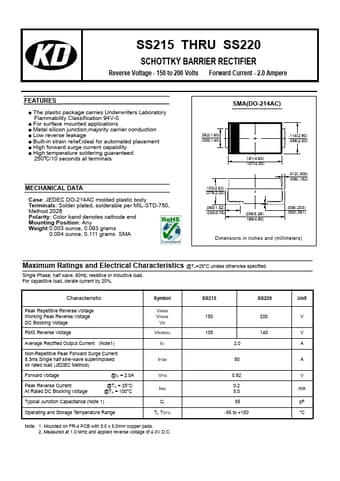

Preview of SS215 PDF
datasheet Preview Page 2

Datasheet Details

Part number
SS215
Manufacturer
KD
File Size
586.07 KB
Datasheet
SS215-KD.pdf
Description
SCHOTTKY BARRIER RECTIFIER
