DF208S - GLASS PASSIVATED BRIDGE RECTIFIERS

Download the DF208S datasheet PDF. This datasheet also covers the DF2005S variant, as both devices belong to the same glass passivated bridge rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Plastic package used has Underwriters Laboratory Flammability Classification 94V-0.
  • Glass passivated chip junction.
  • High surge overload rating of 50 Amperes peak.
  • High temperature soldering guaranteed: 260°C/10 seconds, at 5 lbs. (2.3kg) tension.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DF2005S-KD.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DF208S
Manufacturer KD
File Size 0.97 MB
Description GLASS PASSIVATED BRIDGE RECTIFIERS
Datasheet download datasheet DF208S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DF208S 2A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER MIC
DF208S Glass Passivated Bridge Rectifier Eris
DF208S BRIDGE RECTIFIERS HY
DF208S 2.0A Glass Passivated Bridge Rectifier TAITRON
DF208S Bridge Rectifier First Silicon

Other Datasheets by KD

Part Number Description
DF2005S GLASS PASSIVATED BRIDGE RECTIFIERS
DF201S GLASS PASSIVATED BRIDGE RECTIFIERS
DF202S GLASS PASSIVATED BRIDGE RECTIFIERS
DF204S GLASS PASSIVATED BRIDGE RECTIFIERS
DF206S GLASS PASSIVATED BRIDGE RECTIFIERS

Full PDF Text Transcription

Click to expand full text

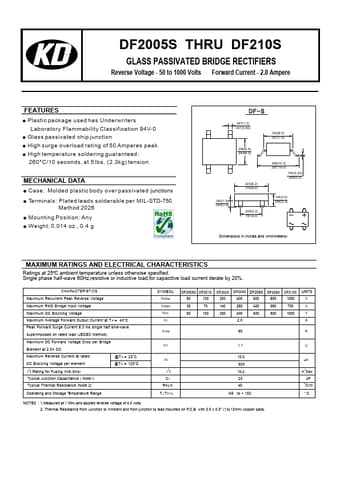

DF2005S THRU DF210S GLASS PASSIVATED BRIDGE RECTIFIERS Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere FEATURES ● Plastic package used has Underwriters Laboratory Flammability Classification 94V-0 ● Glass passivated chip junction ● High surge overload rating of 50 Amperes peak ● High temperature soldering guaranteed: 260°C/10 seconds, at 5 lbs. (2.3kg) tension MECHANICAL DATA ● Case: Molded plastic body over passivated junctions ● Terminals: Plated leads solderable per MIL-STD-750 Method 2026 ● Mounting Position: Any ● Weight: 0.014 oz., 0.4 g DF-S .047(1.2) .037(0.95) .256(6.5) .244(6.2) .063(1.6) .055(1.4) .323(8.2) .315(8.0) .205(5.2) .197(5.0) .335(8.5) .307(7.8) .406(10.3) .391(10.0) .140(0.35) .008(0.2) .134(3.4) .094(2.
