BTA100-1600, BTA100-800 - 4 Quadrants TRIACs

KCD

📥 Download Datasheet

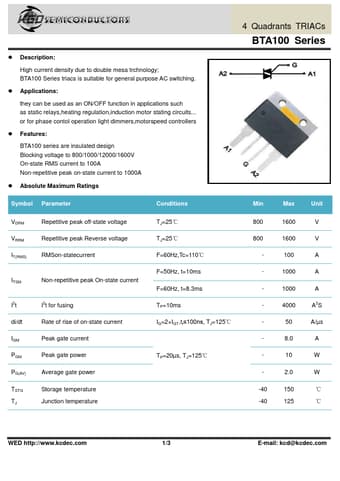

BTA100-1600 Datasheet Preview — This datasheet PDF includes multiple part numbers: BTA100-1600, BTA100-800. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	BTA100-1600, BTA100-800
Manufacturer	KCD
File Size	254.68 KB
Description	4 Quadrants TRIACs
Datasheet	BTA100-800-KCD.pdf
Note	This datasheet PDF includes multiple part numbers: BTA100-1600, BTA100-800. Please refer to the document for exact specifications by model.

BTA100-1600 Product details

Description

High current density due to double mesa trchnology; BTA100 Series triacs is suitable for general purpose AC switching. Applications: they can be used as an ON/OFF function in applications such as static relays,heating regulation,induction motor stating circuits or for phase contol operation light dimmers,motorspeed controllers

Features

s: BTA100 series are insulated design Blocking voltage to 800/1000/12000/1600V On-state RMS current to 100A Non-repetitive peak on-state current to 1000A.
Absolute Maximum Ratings 4 Quadrants TRIACs BTA100 Series Symbol Parameter Conditions Min Max Unit VDRM VRRM IT(RMS) Repetitive peak off-state voltage Repetitive peak Reverse voltage RMSon-statecurrent ITSM Non-repetitive peak On-state current I2t di/dt IGM PGM PG(AV) TSTG TJ I2t for fusing Rate of rise of on-state current Pea.
