JW1965DC, JW1965AC - Boost LED Driver

JoulWatt

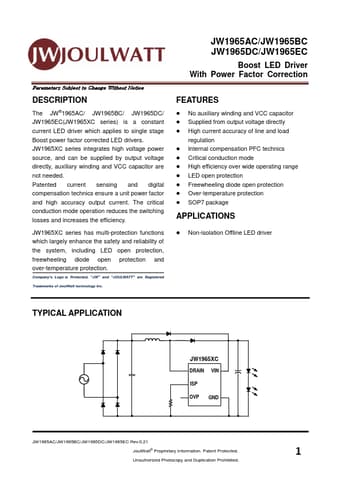

JW1965DC Datasheet Preview — This datasheet PDF includes multiple part numbers: JW1965DC, JW1965AC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	JW1965DC, JW1965AC
Manufacturer	JoulWatt
File Size	488.47 KB
Description	Boost LED Driver
Datasheet	JW1965AC-JoulWatt.pdf
Note	This datasheet PDF includes multiple part numbers: JW1965DC, JW1965AC. Please refer to the document for exact specifications by model.

JW1965DC Product details

Description

The JW®1965AC/ JW1965BC/ JW1965DC/ JW1965EC(JW1965XC series) is a constant current LED driver which applies to single stage Boost power factor corrected LED drivers.

Features

No auxiliary winding and VCC capacitor.
Supplied from output voltage directly.
High current accuracy of line and load regulation.
Internal compensation PFC technics.
Critical conduction mode.
High efficiency over wide operating range.
LED open protection.
Freewheeling diode open protection.
Over-temperature protection.
SOP7 package.
