JW1501A Multi-Mode Primary-Side Regulation

JW1501A Description

JW1501A/B Parameters Subject to Change Without Notice .
JW1501A/B is a high performance Primary Side Regulation (PSR) power switch with high precision CV/CC control ideal for charger applications.

JW1501A Features

* Integrated with 650V MOSFET Multi Mode PSR Control Audio Noise Free Operation for PSR Optimized Dynamic Response for PSR Low Standby Power

JW1501A Applications

* In CV mode, JW1501A/B adopts Multi Mode Control which uses the hybrid of AM (Amplitude Modulation) mode and (Frequency Modulation) FM mode to improve system efficiency and reliability. In CC mode, the IC uses PFM control with line and load CC compensation. The IC can achieve audio noise free operat

📥 Download Datasheet

Preview of JW1501A PDF

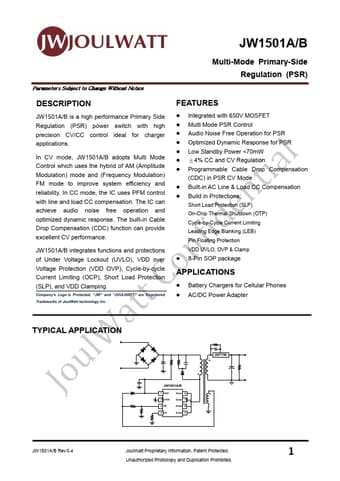

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
JW1501A
Manufacturer
JoulWatt
File Size
538.82 KB
Datasheet
JW1501A-JoulWatt.pdf
Description
Multi-Mode Primary-Side Regulation
