ICVN2109A200 - SMD CHIP VARISTORS

Download the ICVN2109A200 datasheet PDF (ICVL0518V500 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for smd chip varistors.

Features

  • SMD type chip varistors are highly reliable in surface mount.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ICVL0518V500-JohansonDielectrics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ICVN2109A200
Manufacturer Johanson Dielectrics
File Size 277.75 KB
Description SMD CHIP VARISTORS
Datasheet download datasheet ICVN2109A200 Datasheet

📁 Similar Datasheet

Other Datasheets by Johanson Dielectrics

Full PDF Text Transcription

Click to expand full text

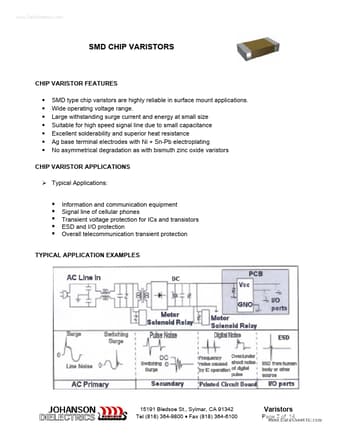

www.DataSheet4U.com SMD CHIP VARISTORS CHIP VARISTOR FEATURES • SMD type chip varistors are highly reliable in surface mount applications. • Wide operating voltage range. • Large withstanding surge current and energy at small size • Suitable for high speed signal line due to small capacitance • Excellent solderability and superior heat resistance • Ag base terminal electrodes with Ni + Sn-Pb electroplating • No asymmetrical degradation as with bismuth zinc oxide varistors CHIP VARISTOR APPLICATIONS Typical Applications: Information and communication equipment Signal line of cellular phones Transient voltage protection for ICs and transistors ESD and I/O protection Overall telecommunication transient protection TYPICAL APPLICATION EXAMPLES 15191 Bledsoe St.
