MSB20B - 2A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Product Overview

Jingdao

Datasheet Details

Part number	MSB20B
Manufacturer	Jingdao
File Size	114.90 KB
Description	2A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Datasheet	MSB20B Datasheet
Additional preview pages of the MSB20B datasheet.

Product details

Description

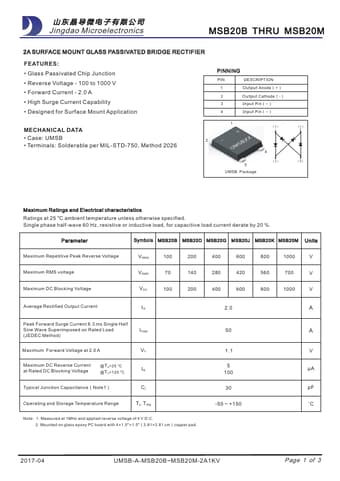

1 Output Anode（+） 2 Output Cathode（-） 3 Input Pin（~） 4 Input Pin（~） 1 （-2） 3 UMSB Package 4 ~ （3）（+1） ~ （4） Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %.Parameter Symbols MSB20B MSB20D MSB20G MSB20J MSB20K MSB20M Units Maximum Repetitive Peak Reverse Voltage VRRM 100 200 400 600 800 1000 V Maximum RMS voltage VRM

Features

Glass Passivated Chip Junction.
Reverse Voltage - 100 to 1000 V.
Forward Current - 2.0 A.
High Surge Current Capability.
Designed for Surface Mount.
